About this design

  • Type: Addition (Laneway)
  • # of units: 1
  • Square footage: 1,033 sq. ft.
  • Lot size: Medium lot (at least 50 ft. x 120 ft. or 6,000 sq. ft.)
  • Estimated cost of construction: Starting at $550,000 (2024 estimates, subject to change)
  • Design ID: DL008

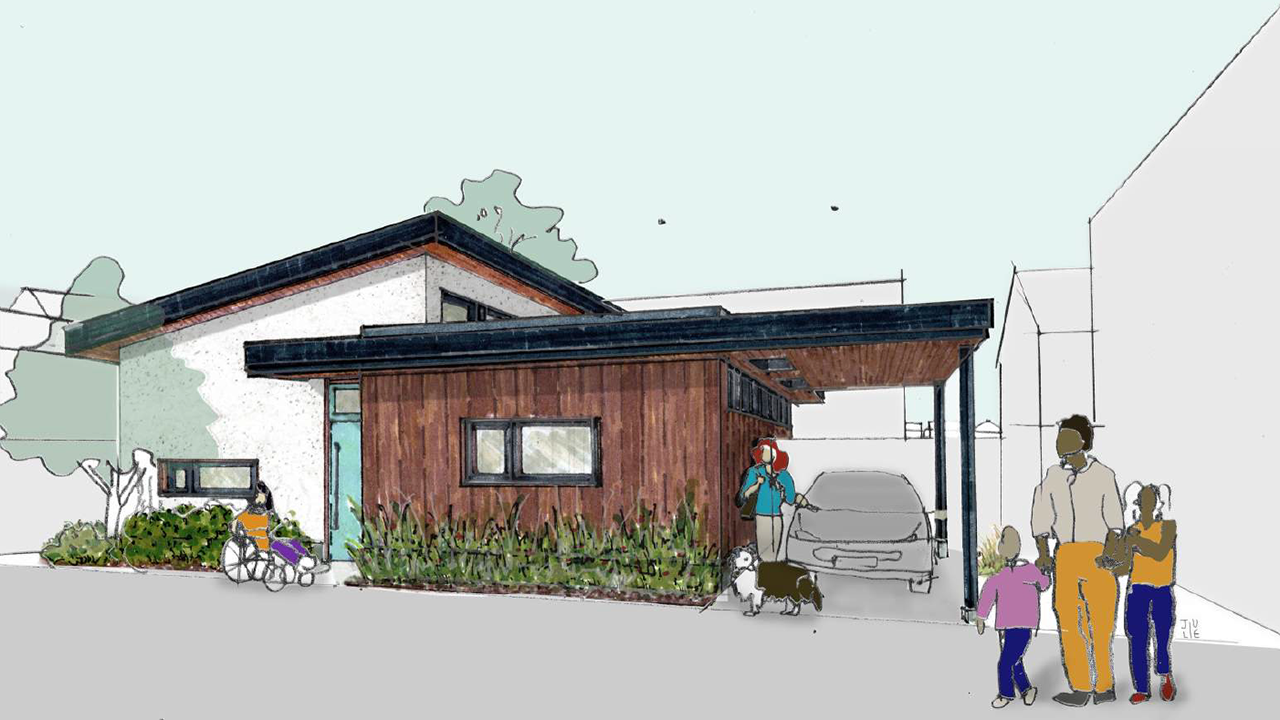

Commercial laneway is a classic design best suited for properties with 50’ frontage. The living/dining space features 10’+ high ceilings that brings in natural light through the large patio doors at grade in addition to the transom windows above. The access to the bedrooms is through a hallway to create privacy and separation from the living space. A high ceiling above the bathroom is used for mechanical units, like HRVs. The primary bedroom has a connected, 3 piece bathroom. This design can also be modified to suit slightly sloped sites by adding steps from the rear yard entry.

How to use this design

Lanefab's integrated design/build process means that they can be a one‐stop‐shop for the entire process of designing and building your home. They can use this plan as a starting point for exploring more options or fit the design on your property and get going on the permit. Lanefab has an experienced team of residential designers, interior designers, carpenters and project managers. They also have a dedicated team of consultants and subcontractors who work with them on a recurring basis.

Price to license plan: $950

Hourly rate for additional services (if applicable):

  • Feasibility Study ($150 for principal, $100/hour for senior designer): Work with Lanefab to explore building massing placement options and modify the design to suit your unique needs and site.
  • Interior Design ($85/hour for the design): Develop design plans and specs suitable for construction, including cabinetry layouts, lighting and electrical plans and interior design specs.
  • Estimating, Permit & Construction Details (Base fee for stages, plus additional $70/hour, if committed to building with Lanefab): Develop design plans suitable for permit, including structural engineering, survey, arborist report, warranty, etc.
  • Construction (project dependent, please contact).

  • Minimum lot size: 50’ x 120’
  • Lot characteristics suitable for design: Lane access at rear
  • Servicing and access requirements for design: Fire access from street, waste pick up at lane
  • Parking requirements: Large, 14’-10”x17’-0” at grade parking pad

Preview site and floor plans

Additional information

Energy considerations

  • 13” exterior wall assembly
  • Flat roof for easy solar panel maintenance
  • Dedicated closets for HRV and electric HWT

Privacy

  • Exterior balcony facing lane
  • Smaller windows on neighbor facing elevations (east and west)

Adaptability

  • Ground level bathrooms with 30”x48 clr

Green building and passive homes

  • Inset windows to reduce thermal bridging
  • Storage consideration for HRV, elec. Hot water tank and exterior mini split unit

Design customizability

  • Can be mirrored depending on site conditions

Bicycle parking

  • Generous at‐grade pad can provide covered bike parking

Parking

  • Large, partially covered at‐grade parking pad close to wall for EV charging

Garbage storage access

  • Dedicated enclosed garbage area on widened side yard setback close to lane
